Penthode


DESCRIPTION

Given a simple net-list describing the high level power architecture of your system Penthode:
- simulates the voltage and current from device turn on to the steady state.
- highlights components working out of specification

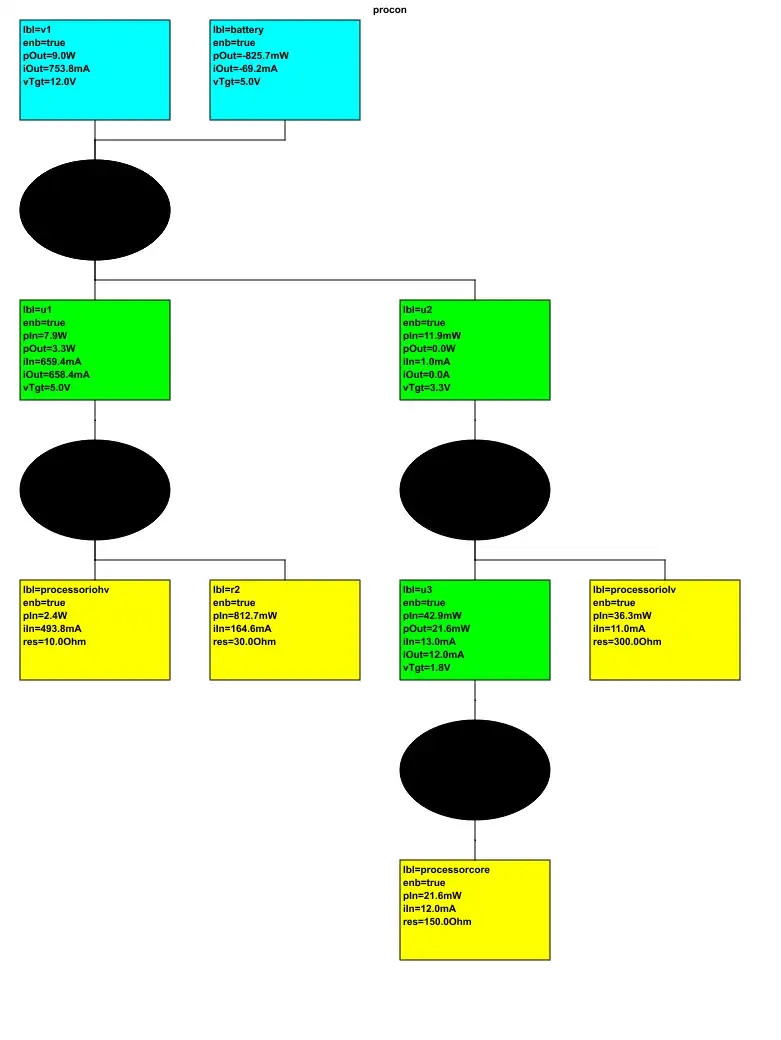

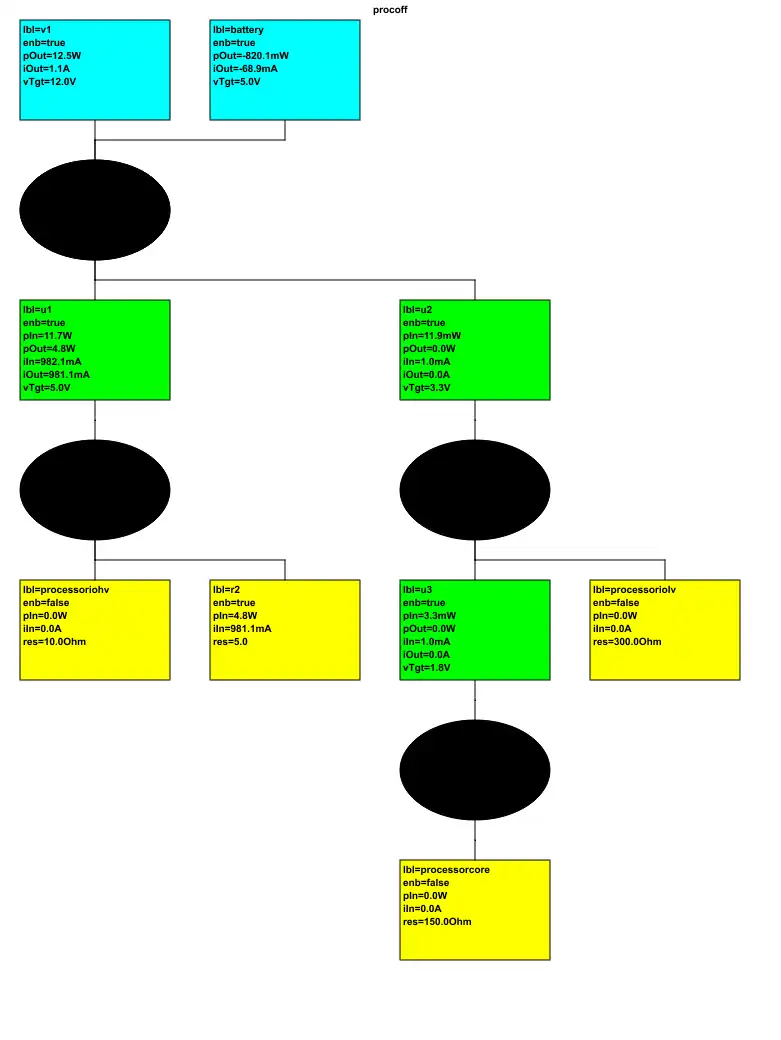

- draws a nice power tree diagram showing the currents/powers balance

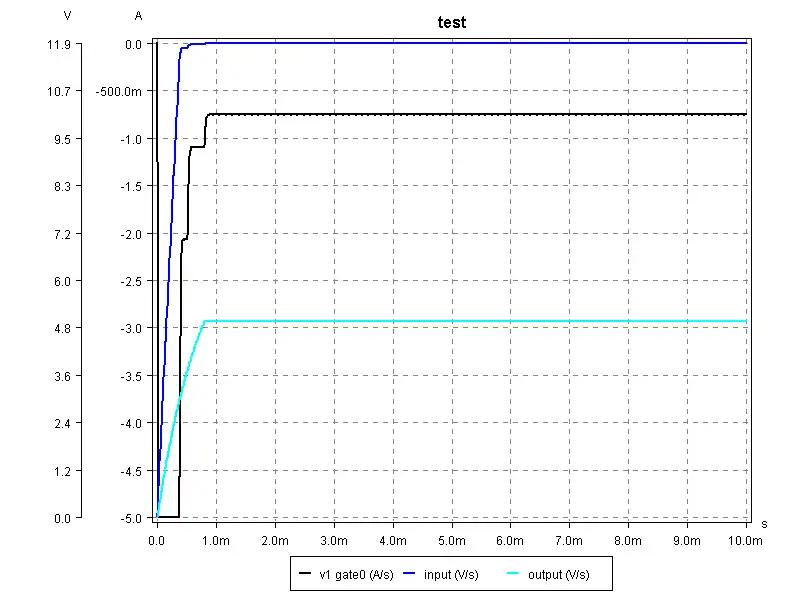

- plots node transient voltage and gate current waveforms
It is possible to change component parameters interactively to improve the design



Features

  • electronic time domain simulation
  • power tree automatic generation
  • interactive design
  • basic programming language


Audience

Engineering


User interface

Console/Terminal


Programming Language

Java


Categories

Simulations, Electronic Design Automation (EDA), Visualization

This is an application that can also be fetched from https://sourceforge.net/projects/penthode/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
